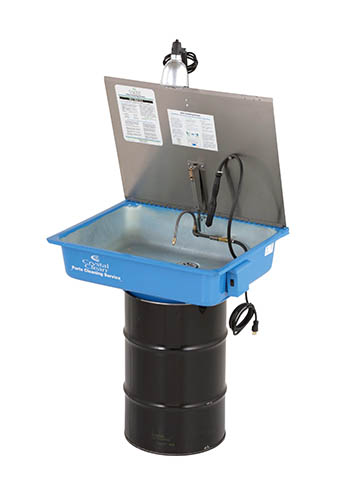

Model 1601/1602

Solvent Drum Mount Unit

“A Timeless Design Improved”
The Model 1601/1602 solvent parts cleaner takes the original sink-on-a-drum design for parts cleaners and rebuilds it to provide modern safety features and conveniences. The machine is built from rugged constructions for extra durability and includes modern lighting, cleaning tools, and a recirculating pump for ease of use. The Model 1601 is designed to be mounted on 16 gallon drums and the Model 1602 is designed to be mounted on 30 gallon drums.

Typical Applications:

  • Automotive & Truck Shops
  • Quick Lubes
  • Machine Shops
  • Maintenance Operations
Specifications

Model 1601

Inside Tank DimensionsOutside Tank Dimensions
28” x 18” x 7.5”30.5” x 20.5” x 56”
ElectricalStandard Chemistries
115 VAC 60Hz 1Ph 15AmpAvailable Solvents
Manuals
Model 1601 Manual

Model 1602

Inside Tank DimensionsOutside Tank Dimensions
32” x 24” x 7.5”34.5” x 24” x 63”
ElectricalStandard Chemistries
115 VAC 60Hz 1Ph 15AmpAvailable Solvents
Manuals
Model 1602 Manual

Model 1632

Low Profile Brake Cleaner Unit

“Efficient Cleaning in a Small Package”
The Model 1632 solvent parts cleaner is a low profile, portable parts cleaner perfect for cleaning brakes and other smaller automotive parts. The flow-through brush system and removable work tray make cleaning parts easy and quick. The heavy gauge steel construction and powder coated epoxy finish makes for a durable parts cleaner built to last.

Typical Applications:

  • Automotive & Truck Shops
  • Heavy Equipment Shops
  • Brake Shops
  • Fleet Maintenance Operations
Specifications
Inside Tank DimensionsOutside Tank Dimensions
29” x 20.5” x 3”36” x 26” x 8”
Weight CapacityElectrical
100 LBS115 VAC 60Hz 1Ph 15Amp
Standard ChemistriesManuals
Available SolventsModel 1632 Manual

Model 1633/Model 1635

Adjustable Solvent Mobile Unit

“A Portable Unit Where You Need It Most”
The Model 1633/1635 solvent parts cleaner is ideal for cleaning small parts with its flow-through brush. This small cleaner can be placed on a bench or a portable cart to minimize the space needed for a parts cleaner. The Model 1633 uses an electric-powered brush and the Model 1635 uses an air-powered brush.

Typical Applications:

  • Brake & Muffler Shops
  • Automotive & Truck Shops
  • Fleet Maintenance Operations
Specifications
Inside Tank DimensionsOutside Tank Dimensions
21” x 15” x 3”30.25” x 15.5” x 34”
Weight CapacityElectrical
100 LBS115 VAC 60Hz 1Ph 15Amp
Standard ChemistriesManuals
Available SolventsModel 1633/1635 Manual

Model 1634

30 Gallon Tank Unit

“Simple Cleaning for Larger Parts”
The Model 1634 solvent parts cleaner combines larger scale cleaning with modern safety and conveniences. Built from a heavy-duty steel construction, this model uses a dual flexible metal spigot and flow-through cleaning brush for added versatility while cleaning. The cleaner also features a removable inside shelf with a basket for smaller parts, an LED work light, and spring loaded door closure with a 165F fusible link.

Typical Applications:

  • Automotive & Truck Shops
  • Fleet Maintenance Operations
  • Transmission Shops
  • Industrial Plants
Specifications
Inside Tank DimensionsOutside Tank Dimensions
35” x 23.5” x 15.5”35.75” x 24.5” x 35”
Weight CapacityElectrical
150 LBS115 VAC 60Hz 1Ph 15Amp
Standard ChemistriesManuals
Available SolventsModel 1634 Manual

Model 1648

40 Gallon Tank Unit

“Simple Cleaning for Larger Parts”
The Model 1648 solvent parts cleaner combines larger scale cleaning with modern safety and conveniences. This model is built from a heavy-duty steel construction and uses a dual flexible metal spigot, spray nozzle, and air attachment bubbler bar for improved versatility while cleaning. The cleaner also features a removable inside shelf with a basket for smaller parts, an LED work light, and spring-loaded door closure with a 165F fusible link.

Typical Applications:

  • Automotive & Truck Shops
  • Transmission Shops
  • Industrial Plants
  • Machine Shops
Specifications
Inside Tank DimensionsOutside Tank Dimensions
44” x 23” x 18.5”45” x 24” x 36”
Weight CapacityElectrical
250 LBS115 VAC 60Hz 1Ph 15Amp
Standard ChemistriesManuals
Available SolventsModel 1648 Manual

Model 1670/1673

Immersion Cleaner Unit

“Simple Cleaning for Larger Parts”
The Model 1670/1673 solvent parts cleaner is an immersion cleaner built for cleaning small parts typically found in automotive shops. The cleaner is designed to be placed on top of a 16 gallon drum and has a heavy duty motor for effective cleaning. Each model includes a rugged parts basket with 1/8” holes for smaller parts and a special hanger bracket.

Typical Applications:

  • Automotive Shops
  • Carburetor Shops
  • Industrial Plants
Specifications
Basket DimensionsAir Operation
11” diameter by 7.5” deep
Fits a 16 gallon drum
77 CFM @ 60 PSI
Standard ChemistriesManuals
Available SolventsModel 1670/1673 Manual

Model 1678

80 Gallon Agitation Unit

“Large Scale Automatic Cleaning”
The Model 1678 solvent parts cleaner is ideal for cleaning large and heavy parts in a simple to use, automated process. Built from a durable steel construction, this cleaner’s 2-speed air operation provides variable agitation speed to easily soak and clean dirty parts. The automatic opening lid, LED work light, and flow-through brush add additional safety and convenience to this heavy-duty machine.

Typical Applications:

  • Transmission & Machine Shops
  • Industrial Plants
Specifications
Inside Tank DimensionsOutside Tank Dimensions
44” x 19” x 25”52” x 40” x 69”
Weight CapacitySpecs
250 LBSPump: 115 VAC 60Hz 1Ph 1Amp
8 CFM @ 120PSI
Standard ChemistriesManual
Available SolventsModel 1678 Manual

Model 1679

150 Gallon Agitation Unit

“Large Scale Automatic Cleaning”
The Model 1679 solvent parts cleaner is our largest parts cleaner, ideal for cleaning large and heavy parts. This automated machine is built from a durable steel construction and has a 2-speed air operation variable agitation speed to easily soak and clean dirty parts. The automatic opening lid, LED work light, and flow-through brush add additional safety and convenience to this heavy-duty machine.

Typical Applications:

  • Transmission & Machine Shops
  • Industrial Plants
Specifications
Inside Tank DimensionsOutside Tank Dimensions
57” x 37.5” x 30”64” x 44.5” x 69”
Weight CapacitySpecs
750 LBS115 VAC 60Hz 1Ph 1Amp
25 CFM @ 120PSI
Standard ChemistriesManuals
Available SolventsModel 1679 Manual
